Inconel 601

Inconel 601

Additional information

UNS Number

N06601

Werkstoff Number

2.4851

Description

Inconel 601 nickel-chromium-iron alloy is a general-purpose engineering material for applications that require resistance to heat and corrosion. It is a solid solution nickel chromium heat resisting alloy which gives outstanding performance at temperatures up to about 1200°C.The alloy also has good resistance to aqueous corrosion, has high mechanical strength, and is readily formed, machined, and welded.

Applied in thermal processing equipment – baskets, trays, fixtures, radiant tubes, muffles, retorts, flame shields, woven wire conveyers, burner nozzles and electrical resistance heating wires. Other applications include thermocouple protection tubes, process heaters, condenser tubes, catalyst supports in nitric acid manufacture, exhaust systems in gasoline engines and combustion chambers, superheater tube supports and ash handling in power generation.

Application

  • Teat treatmentscarburizing and carbon nitridingProcessing

– Trays, baskets,fixtures,refractory anchors, strand annealing and radiant tubes, high velocity gas burners, wire mesh belts etc.

  • Nitric acid production- Insulating cans in ammonia reformers and catalyst support grids
  • Thermal reactors in exhaust system of petrol engines.
  • Fabricated combustion chambers.
  • Power generation industry- tube supports and ash trays

Chemical Component

Chemical Components C Si Mn S Cr Ni Cu Al Fe
Minimum 21 58 1 Ba
Maximum 0.1 0.5 1 0.015 25 63 1 1.7



Mechanical Properties

Tensile Strength
σb
Mpa
Yield Point
σs
Mpa
Elongation
δ
%
Mpa

≥550

Mpa

≥205

≥30



Product Form

Product Form Size Range From Size Range To
Sheet & Plate 0.30 mm 25 mm
Round Bar 4 mm 380 mm

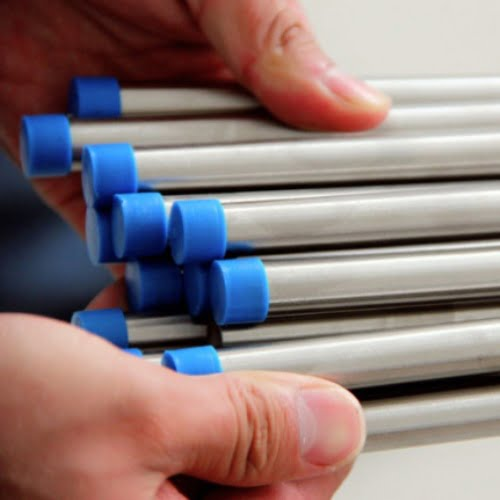

Tube 6 mm 260 mm
