Stainless Steel 321

Additional information

UNS Number

S32100

Werkstoff Number

1.4541

Description

321 stainless steel (1.4541) is a heat resistant grade supplied into numerous industry sectors. The key property of this grade is the added titanium content (5 x C%) stabilising the material and making its resistance to carbide precipitation when exposed to high temperatures and resistance to oxidation its main characteristics. Whilst retaining good strength and corrosion resistance when exposed to high temperatures, this grade of stainless steel like most austenitic grades will also maintain its strength and toughness at sub-zero temperatures, making this an excellent choice for various applications ranging from oil refinery equipment to automotive exhaust systems. This heat resistant grade of stainless steel has a maximum dry air service temperature of 850ºC.

Remarkably high strength as well as scaling resistance and phase stability set 321 Stainless Steel apart from other similar grades. This grade is not, however, recommended for welding consumable, as the titanium component does not allow good transfer of heat across a high-temperature arc.





Application

Typical applications

  • Expansion joints
  • Bellows
  • Furnace parts
  • Heating element tubing

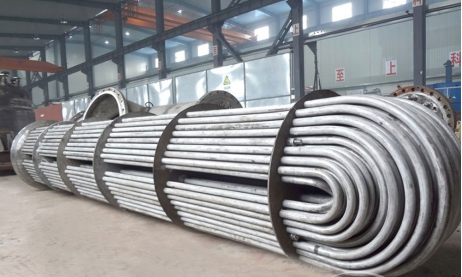

  • Heat Exchangers
  • Woven or welded screens for high-temperature mineral processing
  • Spiral Welded tube for burner pipes and flues

Chemical Component

Chemical Components C Si Mn P S Cr Ni Mo N
Minimum 17 9
Maximum 0.08 1 2 0.045 0.015 19 12

Mechanical Properties

Elastic Modulus Coefficient of Thermal Expansion (CTE) Coefficient of Thermal Conductivity Specific Heat Capacity Resistivity Magnetism
20°C 100°C 200°C 300°C 400°C 500°C 100°C 200°C 300°C 400°C 500°C 20°C 20°C 20°C
GPa 10-6K-1 W/m.K J/kg.K Ω.mm2/m
200 194 186 179 172 165 16 16.5 17 17.5 18 15 500 0.73 Yes

*-Small amounts of ferrite and/or martensite caused by cold deformation will increase the magnetizability.

Diameter
d
mm
Tensile Strength
σb
Mpa
Yield Point
σs
Mpa
Elongation
δ
%
Impact Strength

KV2

J

Bar,Wire, Profile

160<d≤250 (+AT)

500~700 ≥190 ≥30 ≥60
Bar,Wire, Profile

d≤160 (+AT)

500~700 ≥190 ≥40 ≥100
Bar,Wire,Profile

63<d≤160 (+AT)

500~700 ≥190 ≥30 ≥100
Bar,Wire,Profile

40<d≤63 (+AT)

500~850 ≥190 ≥30 ≥100
Bar,Wire, Profile

16<d≤40 (+AT)

500~850 ≥190 ≥30 ≥100

Product Form

Product Form Size Range From Size Range To
Sheet & Plate 0.30 mm 25 mm
Round Bar 4 mm 380 mm
Tube 6 mm 260 mm
Wire 0.2 mm 3.5 mm
