Stainless Steel 409

Additional information

UNS Number

S40900

Werkstoff Number

1.4512

Description

Stainless steel 409 is a Ferritic steel. With applications that demand weldability and applications in exhaust systems of automobiles, 409 stainless steel is commonly considered as a chromium stainless steel. It good mechanical properties and high-temperature corrosion resistance.

Stainless steel 409 have excellent resistance to exhaust gas and atmospheric corrosion, superior to that of 410 martensitic grades with 12% chromium and 3CR12. However, the corrosion resistance is lower than that of grade 430 steels containing 17% chromium. The surface of Stainless steel 409 is liable to mild corrosion, which limits the usage of steels for decorative purposes.

Application

Stainless Steel 409 is designed principally for the automotive exhaust industry, it has been successfully used in other industrial applications as well. Some examples of applications that including:

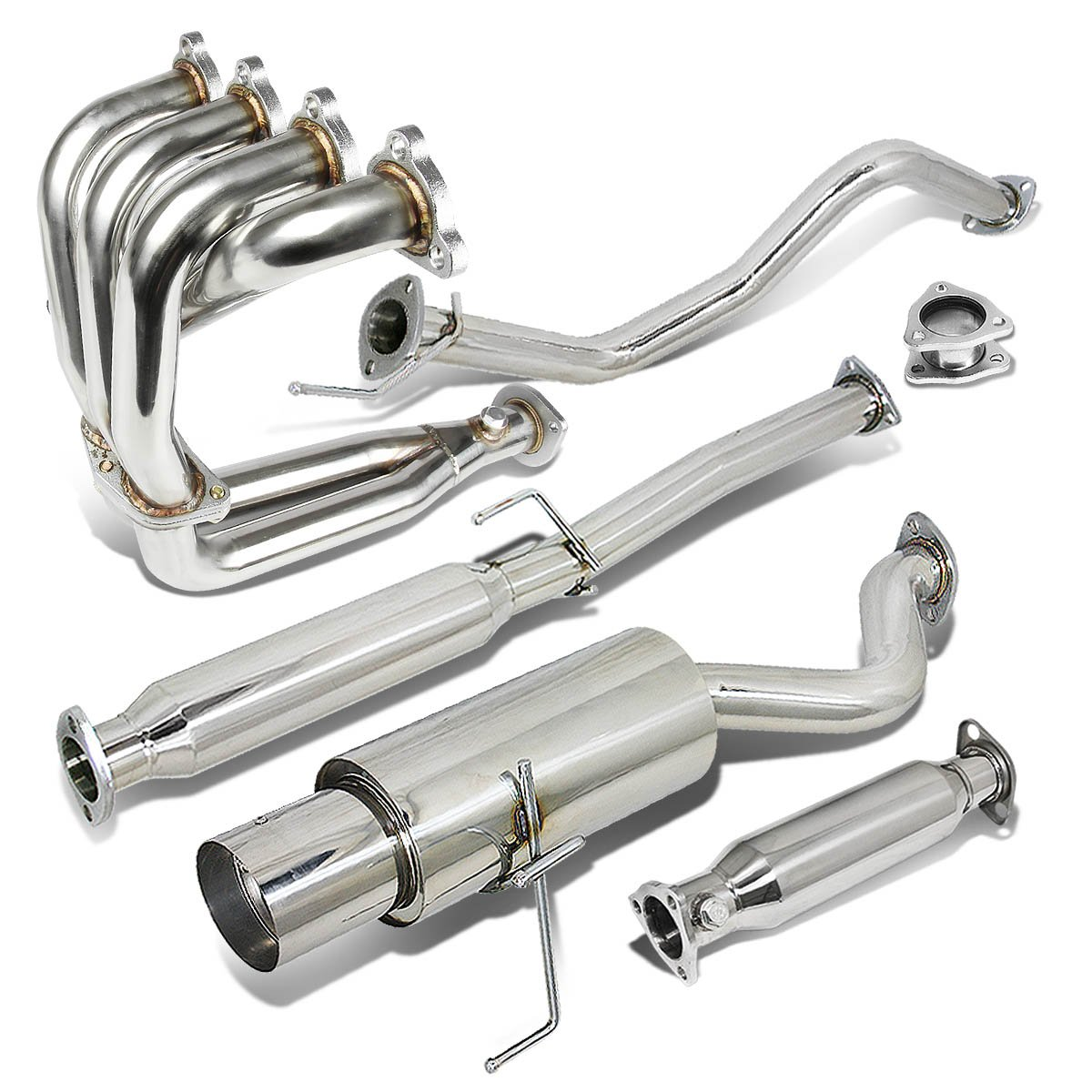

  • Automotive exhaust systems
  • Catalytic converters
  • Mufflers
  • Tailpipes
  • Farm equipment
  • Structural support and hangers
  • Transformer cases
  • Furnace components
  • Heat exchanger tubing

Chemical Component

Chemical Components C Si Mn P S Cr Ni Mo N
Minimum 10.5 12
Maximum 0.03 1 1 0.04 0.015 12.5 14

Mechanical Properties

Elastic Modulus Coefficient of Thermal Expansion (CTE) Coefficient of Thermal Conductivity Specific Heat Capacity Resistivity Magnetism
20°C 100°C 200°C 300°C 400°C 500°C 100°C 200°C 300°C 400°C 500°C 20°C 20°C 20°C
GPa 10-6K-1 W/m.K J/kg.K Ω.mm2/m
220 215 210 205 195 10.5 11 11.5 12 12 25 460 0.6 Yes

Product Form

Product Form Size Range From Size Range To
Sheet & Plate 0.30 mm 25 mm
Round Bar 4 mm 380 mm
Tube 6 mm 260 mm
